4 Inch Commercial SMD Downlight with Junction Box, Baffle Trim, CRI 90+, Dimmable Airtight Downlight, IC Rated

Baffle 4 inch Commercial SMD DownlightsBaffle 4 inch Commercial SMD DownlightsBaffle 4 inch Commercial SMD DownlightsBaffle 4 inch Commercial SMD DownlightsBaffle 4 inch Commercial SMD DownlightsBaffle 4 inch Commercial SMD Downlights
Product Features:
  • Baffle Trim 4 inch 12w 950lm downlights
  • Architectural design commercial grade quality downlights
  • Direct lighting design with high illuminance.
  • Anti-glare design, without ghosting.
  • Cone and baffle designs are available.
  • Fire-free flexible pipe provides better protection to the wires.

4 inch baffle commercial smd downlight

baffle trim commercial smd downlight product feature

baffle trim commercial smd downlight product detail

5%-100% brightness dimmable for baffle trim commercial smd downlight

baffle trim commercial smd downlight applications

Baffle Trim 4" Commercial SMD Downlights

Features: Architectural design commercial grade quality; Direct lighting design with high illuminance; Anti-glare design, without ghosting;  Cone and baffle designs are available; Best choice for Commercial Use.

Higher Safety Standards: Airtight structure and IC rating can be in contact with combustible material. Fire-free flexible pipe and die-casting aluminum housing ensure to avoid electrical shocks or fire hazards.


Energy Saving: Energy Star certified, only consumes 12 watts, provide well-balanced light which equals to a 80W halogen lamp.

Widely Application: 5%-100% excellent smooth dimming, compatible with most dimmers, suitable for different scenarios such as stores, shopping malls, hotels, restaurants, cafe, closets, kitchens, hallways, basement, etc.

Model JXL-TE04-T12W-UDH-XX
Style 4" Regress LED Downlight
Wattage 12 Watts
Input Voltage 100-120V AC / Triac Dimmable
Luminous Flux 950LM
Color Temp ‎2700K-6500K Customized
Material ‎Aluminum
Shape ‎Round

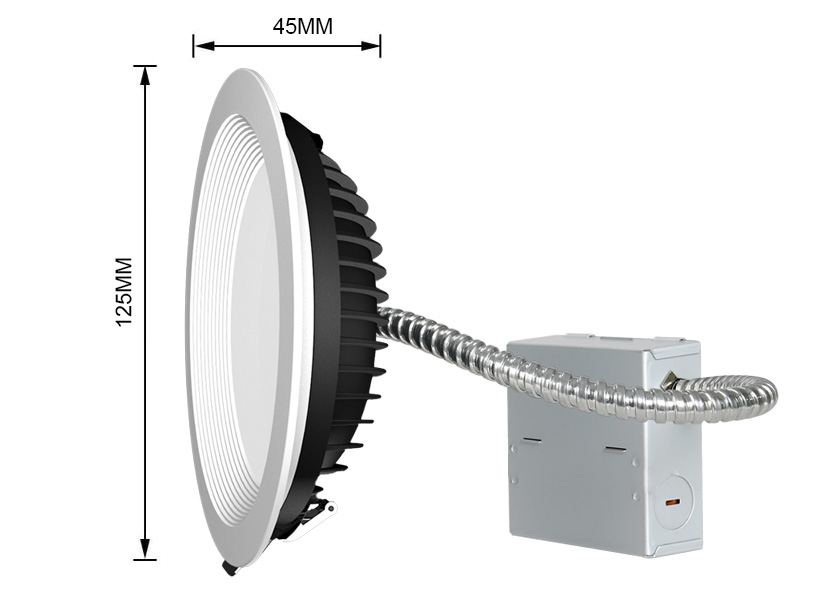

Dimensions(DxH) Φ125 X 45mm
Cut Out Size Φ102mm
