3" Adjustable Gimbal COB LED Recessed Downlight with Junction Box

3 inch LED Gimbal Downlight3 inch LED Gimbal Downlight3 inch LED Gimbal Downlight3 inch LED Gimbal Downlight3 inch LED Gimbal Downlight3 inch LED Gimbal Downlight
Product Features:
  • 3" 7w led gimbale downlight

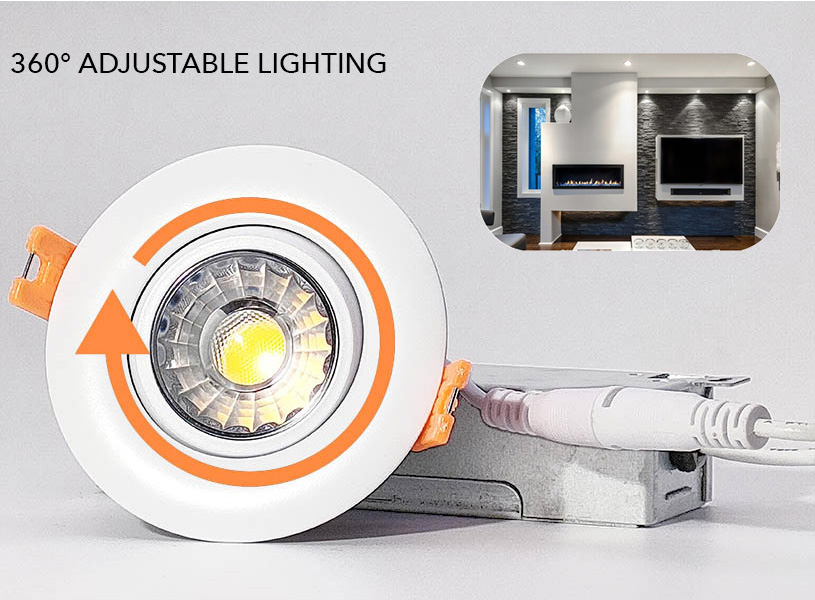

  • 360 degree gimbal adjustment, switch lighting angles at will.
  • Airtight & Type IC Rated: No housing Required.
  • Triac Dimmable: dim 5%-100% brightness at will.
  • External driver, easy to install, user friendly.
  • Junction Box Included: No additional hardware required.
  • Ideal for higher ceilings or for focused area illumination.
  • Suit for damp locations.

3 inch 7w led gimbal downlight

360 degree adjustable gimbal light

5%  to 100% brightness dimmable

compatible with most dimmers

high color index over 90

3inch gimbal downlight applications

About This 3 Inch Gimbal Downlight

Adjustable: The 3 inch gimbal downlight supports 360° horizontal rotaion, you can switch lighting angles at will. It is Ideal for higher ceilings or for focused area illumination. The CRI90+ highlights all your decorations with vivid and natural lighting.

Great Durability: The light fixture and j-box are both IC rated, letting it be able to be in contact with combustible materials. The airtight structure effectively prevents heated airflow diffusion. The metal light body makes it durable and able to be used in damp locations.

Energy Efficiency: With the same brightness as a 50W incandescent lamp, this 7W LED downlight reduces your energy usage and electricity bills while still being suitable with AC120V input voltage.

Smooth Dimming: This light is compatible with the majority of LED dimmers on the market and can smoothly dim from 5% to 100%, allowing it to fit a wide range of lighting applications such as in kitchens, living rooms, bedrooms and bathrooms.

Model JXL-ZF03-T07W-UDN-XX
Style 3" 360°Gimbal COB Downlight
Wattage 7W
Input Voltage 120V AC / Triac Dimmable
Luminous Flux 650LM
Color Temp 2700K - 6000K Customized
Material ‎Aluminum
Shape Round
Dimensions(DxH) Φ85 X 52mm
Cut Out Size Φ75mm
Beam Angle 24°/38°/60°
